#include <ray_2d.h>

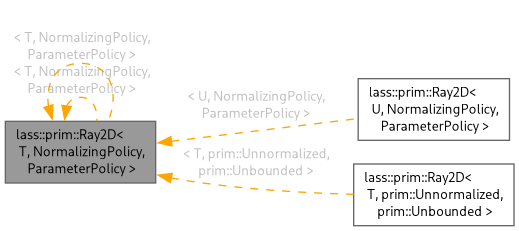

Inheritance diagram for lass::prim::Ray2D< T, NormalizingPolicy, ParameterPolicy >:

[legend]

Public Member Functions
const TPoint &	support () const
	return origin of ray.

TPoint &	support ()
	access origin of ray the origin is also the support point of the ray.

const TVector &	direction () const
	Return direction of ray.

void	setDirection (const TVector &iDirection)
	Set direction and normalize it if that's the policy.

void	lookAt (const TPoint &iLookAt)
	Set direction from origin to look-at point.

const TPoint	point (TParam a_t) const
	Return point on ray by it's parameter.

const TValue	t (const TPoint &iPoint) const
	Return parameter of point on the ray that is the projection of the given point.

const TVector	project (const TVector &iVector) const
	Project vector on the axis of the ray.

const TVector	reject (const TVector &iVector) const
	Reject vector against the axis of the ray.

const TVector	reflect (const TVector &iVector) const
	Reflect vector against the axis of the ray.

const TPoint	project (const TPoint &iPoint) const
	Project point on the axis of the ray.

const TVector	reject (const TPoint &iPoint) const
	Reject point against the axis of the ray.

const TPoint	reflect (const TPoint &iPoint) const
	Reject point against the axis of the ray.

Side	classify (const TPoint &iPoint) const
	Return on what side a point is located.

bool	isValid () const
	Return true if ray is valid (direction isn't a zero vector).

Related Symbols
(Note that these are not member symbols.)
template<typename T, typename MMPAabb, typename NPRay, typename PPRay>
Result	intersect (const Aabb2D< T, MMPAabb > &aabb, const Ray2D< T, NPRay, PPRay > &ray, T &t, const T &tMin=T())
	Find the intersection of an AABB and ray by their parameter t on the ray.

template<typename T, typename MMPAabb, typename NPRay, typename PPRay>
Result	intersect (const Aabb2D< T, MMPAabb > &aabb, const Ray2D< T, NPRay, PPRay > &ray, const Vector2D< T > &invDirection, T &t, const T &tMin=T())
	Find the intersection of an AABB and ray by their parameter t on the ray.

template<typename T, class EP1, class NP1, class NP2, class PP2>
Result	intersect (const Line2D< T, EP1, NP1 > &line, const Ray2D< T, NP2, PP2 > &ray, T &t, const T &tMin=T())
	Find the intersection of a line and ray by their parameter t on the ray.

template<typename T, class PP1, class NP2, class PP2>
Result	intersect (const LineSegment2D< T, PP1 > &lineSegment, const Ray2D< T, NP2, PP2 > &ray, T &t, const T &tMin=T())
	Find the intersection of a ray and a line segment by parameter t on the ray.

Detailed Description

template<typename T, class NormalizingPolicy = Normalized, class ParameterPolicy = Bounded>
class lass::prim::Ray2D< T, NormalizingPolicy, ParameterPolicy >

2D Ray

Author: Bram de Greve [BdG]

Date: 2003

Definition at line 77 of file ray_2d.h.

Member Function Documentation

◆ support()

template<typename T, class NP, class PP>

const Ray2D< T, NP, PP >::TPoint & lass::prim::Ray2D< T, NP, PP >::support ( ) const

return origin of ray.

the origin is also the support point of the ray.

Definition at line 97 of file ray_2d.inl.

References support().

Referenced by intersect(), intersect(), intersect(), intersect(), lass::prim::SimplePolygon2D< T, NoDegenerate >::intersect(), lass::prim::Triangle2D< U >::intersect(), lass::spat::PlanarMesh::shoot(), support(), and support().

◆ point()

template<typename T, class NP, class PP>

const Ray2D< T, NP, PP >::TPoint lass::prim::Ray2D< T, NP, PP >::point ( TParam iT ) const

Return point on ray by it's parameter.

Exceptions

throw an error if parameter is out of range t >= 0, if Bounded is used as ParameterPolicy.

Returns: origin + t * direction

Definition at line 156 of file ray_2d.inl.

References point().

Referenced by lass::spat::PlanarMesh::locate(), point(), and lass::spat::PlanarMesh::shoot().

◆ t()

template<typename T, class NP, class PP>

const Ray2D< T, NP, PP >::TValue lass::prim::Ray2D< T, NP, PP >::t ( const TPoint & iPoint ) const

Return parameter of point on the ray that is the projection of the given point.

Warning: it can return a (invalid) negative number even if you've used a bounded parameter policy.

Definition at line 169 of file ray_2d.inl.

References t().

Referenced by lass::spat::PlanarMesh::locate(), lass::spat::PlanarMesh::shoot(), and t().

Friends And Related Symbol Documentation

◆ intersect() [1/4]

template<typename T, typename MMPAabb, typename NPRay, typename PPRay>

Result intersect	(	const Aabb2D< T, MMPAabb > &	aabb,
		const Ray2D< T, NPRay, PPRay > &	ray,
		T &	t,
		const T &	tMin = T() )

Find the intersection of an AABB and ray by their parameter t on the ray.

Parameters

aabb	[in] the AABB
ray	[in] the ray
t	[out] the parameter of the intersection point > tMin.
tMin	[in] the minimum t that may be returned as valid intersection.

Returns

rNone no intersections with t > tMin found t is not assigned.
rOne a intersection with t > tMin is found t is assigned.

Definition at line 70 of file aabb_2d_ray_2d.h.

◆ intersect() [2/4]

template<typename T, typename MMPAabb, typename NPRay, typename PPRay>

Result intersect	(	const Aabb2D< T, MMPAabb > &	aabb,
		const Ray2D< T, NPRay, PPRay > &	ray,
		const Vector2D< T > &	invDirection,
		T &	t,
		const T &	tMin = T() )

Find the intersection of an AABB and ray by their parameter t on the ray.

This version accepts a precomputed reciprocal of the ray direction (1/x, 1/y, 1/z). This is useful when you do many intersections with the same ray, so the reciprocal needs only to be computed once.

Parameters

aabb	[in] the AABB
ray	[in] the ray
invDirection	[in] the reciprocal of the ray direction
t	[out] the parameter of the intersection point > tMin.
tMin	[in] the minimum t that may be returned as valid intersection.

Returns

rNone no intersections with t > tMin found t is not assigned.
rOne a intersection with t > tMin is found t is assigned.

Definition at line 132 of file aabb_2d_ray_2d.h.

◆ intersect() [3/4]

template<typename T, class EP1, class NP1, class NP2, class PP2>

Result intersect	(	const Line2D< T, EP1, NP1 > &	line,
		const Ray2D< T, NP2, PP2 > &	ray,
		T &	t,
		const T &	tMin = T() )

Find the intersection of a line and ray by their parameter t on the ray.

Parameters

line	[in] the line
ray	[in] the ray
t	[out] the parameter of the intersection point > tMin.
tMin	[in] the minimum t that may be returned as valid intersection.

Returns

rNone no intersections > tMin found t is not assigned.
rOne exactly one intersection > tMin found t represents it.
rInfinite infinite many intersections found (ray is coincident with plane), t is not assigned.
rInvalid iPlane or ray is invalid, no intersection. t is not assigned.

Definition at line 74 of file line_2d_ray_2d.h.

◆ intersect() [4/4]

template<typename T, class PP1, class NP2, class PP2>

Result intersect	(	const LineSegment2D< T, PP1 > &	lineSegment,
		const Ray2D< T, NP2, PP2 > &	ray,
		T &	t,
		const T &	tMin = T() )

Find the intersection of a ray and a line segment by parameter t on the ray.

Parameters

lineSegment	[in] the line segment
ray	[in] the ray
t	[out] the parameter of the intersection point > tMin.
tMin	[in] the minimum t that may be returned as valid intersection.

Returns

rNone no intersections with t > tMin found t is not assigned.
rOne a intersection with t > tMin is found t is assigned.

Definition at line 70 of file line_segment_2d_ray_2d.h.

The documentation for this class was generated from the following files:
