lass::prim::LineSegment2D< T, ParameterPolicy > Class Template Reference
2D Line Segment More...
#include <line_segment_2d.h>

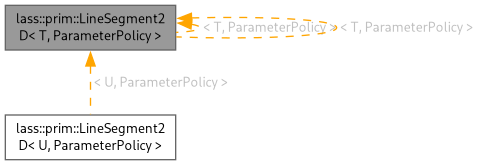

Inheritance diagram for lass::prim::LineSegment2D< T, ParameterPolicy >:
Public Member Functions | |
| const TPoint | point (TParam t) const |
| Return point on ray by it's parameter. | |
| const TValue | t (const TPoint &point) const |
| Return parameter of projection of iPoint on line segment. | |
| const TVector | vector () const |
| Return vector from tail to head. | |
| const TValue | length () const |
| Return length of line segment. | |
Related Symbols | |
(Note that these are not member symbols.) | |
| template<typename T, class PPa, class PPb> | |
| Result | intersect (const LineSegment2D< T, PPa > &a, const LineSegment2D< T, PPb > &b, T &tA, T &tB) |
| intersection of two line segments | |
Detailed Description
template<typename T, class ParameterPolicy = Bounded>
class lass::prim::LineSegment2D< T, ParameterPolicy >
class lass::prim::LineSegment2D< T, ParameterPolicy >
2D Line Segment
- Date
- 2003
Definition at line 74 of file line_segment_2d.h.
Member Function Documentation
◆ point()
template<typename T, class PP>
| const LineSegment2D< T, PP >::TPoint lass::prim::LineSegment2D< T, PP >::point | ( | TParam | t | ) | const |
Return point on ray by it's parameter.
- Returns
- origin + t * direction
Definition at line 116 of file line_segment_2d.inl.
References point(), t(), and vector().
Referenced by lass::prim::Line2D< T, EquationPolicy, NormalizingPolicy >::intersect(), point(), and t().
◆ t()
template<typename T, class PP>
| const LineSegment2D< T, PP >::TValue lass::prim::LineSegment2D< T, PP >::t | ( | const TPoint & | point | ) | const |
Return parameter of projection of iPoint on line segment.
- Warning
- the result can be out of bound [0, 1] regardless the parameter policy used.
Definition at line 129 of file line_segment_2d.inl.
References point(), t(), and vector().
Referenced by intersect(), point(), and t().
Friends And Related Symbol Documentation
◆ intersect()
template<typename T, class PPa, class PPb>
|
intersection of two line segments
- Parameters
-
a [in] line segment A b [in] line segment B aT [out] parameter of intersection point on line segment A bT [out] parameter of intersection point on line segment B
- Returns
- rNone the line segments don't intersect, they have no points in common. tA and tB are not assigned.
- rOne both line segments have exactly one point in common. tA and tB contain parameters of intersection point.
- rInfinite the line segments have more than one point in common, they overlap. tA and tB are not assigned.
Definition at line 208 of file line_segment_2d.inl.
The documentation for this class was generated from the following files:
