lass::prim::Ray3D< T, NormalizingPolicy, ParameterPolicy > Class Template Reference

3D Ray More...

#include <ray_3d.h>

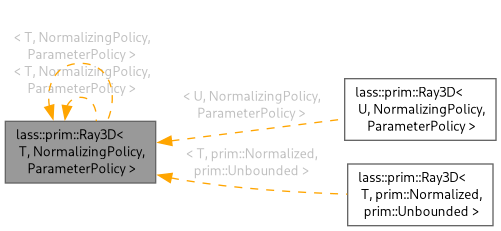

Inheritance diagram for lass::prim::Ray3D< T, NormalizingPolicy, ParameterPolicy >:

Public Member Functions
const TPoint &	support () const
	return origin of ray.
TPoint &	support ()
	access origin of ray the origin is also the support point of the ray.
const TVector &	direction () const
	Return direction of ray.
void	setDirection (const TVector &iDirection)
	Set direction and normalize it if that's the policy.
void	lookAt (const TPoint &iLookAt)
	Set direction from origin to look-at point.
const TPoint	point (TParam a_t) const
	Return point on ray by it's parameter.
const TValue	t (const TPoint &iPoint) const
	Return parameter of point on the ray that is the projection of the given point.
const TVector	project (const TVector &iVector) const
	Project vector on the axis of the ray.
const TVector	reject (const TVector &iVector) const
	Reject vector against the axis of the ray.
const TVector	reflect (const TVector &iVector) const
	Reflect vector against the axis of the ray.
const TPoint	project (const TPoint &iPoint) const
	Project point on the axis of the ray.
const TVector	reject (const TPoint &iPoint) const
	Reject point against the axis of the ray.
const TPoint	reflect (const TPoint &iPoint) const
	Reject point against the axis of the ray.
bool	isValid () const
	Return true if ray is valid (direction isn't a zero vector).

Related Symbols
(Note that these are not member symbols.)
template<typename T, typename MMPAabb, typename NPRay, typename PPRay>
Result	intersect (const Aabb3D< T, MMPAabb > &aabb, const Ray3D< T, NPRay, PPRay > &ray, T &t, const T &tMin=T())
	Find the intersection of an AABB and ray by their parameter t on the ray.
template<typename T, typename MMPAabb, typename NPRay, typename PPRay>
Result	intersect (const Aabb3D< T, MMPAabb > &aabb, const Ray3D< T, NPRay, PPRay > &ray, const Vector3D< T > &invDirection, T &t, const T &tMin=T())
	Find the intersection of an AABB and ray by their parameter t on the ray.
template<typename T, class EPPlane, class NPPlane, class NPRay, class PPRay>
Result	intersect (const Plane3D< T, EPPlane, NPPlane > &plane, const Ray3D< T, NPRay, PPRay > &ray, T &t, const T &tMin=T())
	Find the intersection of a plane and ray by their parameter t on the ray.

Detailed Description

template<typename T, class NormalizingPolicy = Normalized, class ParameterPolicy = Bounded>
class lass::prim::Ray3D< T, NormalizingPolicy, ParameterPolicy >

3D Ray

Author

Bram de Greve [BdG]

Date

2003

Definition at line 78 of file ray_3d.h.

Member Function Documentation

support()

template<typename T, class NP, class PP>

const Ray3D< T, NP, PP >::TPoint & lass::prim::Ray3D< T, NP, PP >::support

(

)

const

return origin of ray.

the origin is also the support point of the ray.

Definition at line 118 of file ray_3d.inl.

References support().

Referenced by lass::prim::Parallelogram3D< U >::intersect(), intersect(), intersect(), intersect(), lass::prim::Triangle3D< U >::intersect(), lass::prim::Triangle3D< U >::intersect(), support(), support(), lass::prim::Transformation3D< U >::transform(), and lass::prim::Transformation3D< U >::transform().

point()

template<typename T, class NP, class PP>

const Ray3D< T, NP, PP >::TPoint lass::prim::Ray3D< T, NP, PP >::point ( TParam t ) const

inline

Return point on ray by it's parameter.

Exceptions

throw

an error if parameter is out of range t >= 0, if Bounded is used as ParameterPolicy.

Returns

origin + t * direction

Definition at line 177 of file ray_3d.inl.

References point(), and t().

Referenced by lass::prim::SimplePolygon3D< U, PlaneEquationPolicy, PlaneNormalizingPolicy >::intersect(), point(), and t().

t()

template<typename T, class NP, class PP>

const Ray3D< T, NP, PP >::TValue lass::prim::Ray3D< T, NP, PP >::t ( const TPoint & point ) const

inline

Return parameter of point on the ray that is the projection of the given point.

Warning

it can return a (invalid) negative number even if you've used a bounded parameter policy.

Definition at line 190 of file ray_3d.inl.

References point(), and t().

Referenced by point(), and t().

Friends And Related Symbol Documentation

intersect() [1/3]

template<typename T, typename MMPAabb, typename NPRay, typename PPRay>

Result intersect ( const Aabb3D< T, MMPAabb > & aabb, const Ray3D< T, NPRay, PPRay > & ray, T & t, const T & tMin = T() )

related

Find the intersection of an AABB and ray by their parameter t on the ray.

Parameters

aabb	[in] the AABB
ray	[in] the ray
tMin	[in] the minimum t that may be returned as valid intersection.
t	[out] the parameter of the intersection point > tMin.

Returns

• rNone no intersections with t > tMin found t is not assigned.
• rOne a intersection with t > tMin is found t is assigned.

Definition at line 72 of file aabb_3d_ray_3d.h.

intersect() [2/3]

template<typename T, typename MMPAabb, typename NPRay, typename PPRay>

Result intersect ( const Aabb3D< T, MMPAabb > & aabb, const Ray3D< T, NPRay, PPRay > & ray, const Vector3D< T > & invDirection, T & t, const T & tMin = T() )

related

Find the intersection of an AABB and ray by their parameter t on the ray.

This version accepts a precomputed reciprocal of the ray direction (1/x, 1/y, 1/z). This is useful when you do many intersections with the same ray, so the reciprocal needs only to be computed once.

Parameters

aabb	[in] the AABB
ray	[in] the ray
invDirection	[in] the reciprocal of the ray direction
tMin	[in] the minimum t that may be returned as valid intersection.
t	[out] the parameter of the intersection point > tMin.

Returns

• rNone no intersections with t > tMin found t is not assigned.
• rOne a intersection with t > tMin is found t is assigned.

Definition at line 131 of file aabb_3d_ray_3d.h.

intersect() [3/3]

template<typename T, class EPPlane, class NPPlane, class NPRay, class PPRay>

Result intersect ( const Plane3D< T, EPPlane, NPPlane > & plane, const Ray3D< T, NPRay, PPRay > & ray, T & t, const T & tMin = T() )

related

Find the intersection of a plane and ray by their parameter t on the ray.

Parameters

plane	[in] the plane
ray	[in] the ray
t	[out] the parameter of the intersection point > tMin.
tMin	[in] the minimum t that may be returned as valid intersection.

Returns

• rNone no intersections > tMin found t is not assigned.
• rOne exactly one intersection > tMin found t represents it.
• rInfinite infinite many intersections found (ray is coincident with plane), t is not assigned.
• rInvalid plane or ray is invalid, no intersection. t is not assigned.

Definition at line 74 of file plane_3d_ray_3d.h.

---

The documentation for this class was generated from the following files:

• ray_3d.h
• aabb_3d_ray_3d.h
• plane_3d_ray_3d.h
• ray_3d.inl
