a planar mesh More...

#include <planar_mesh.h>

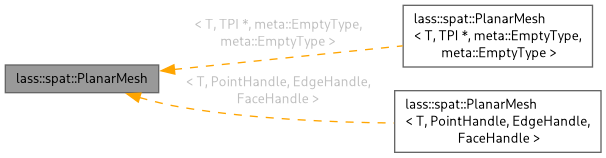

Inheritance diagram for lass::spat::PlanarMesh:

[legend]

Public Member Functions
bool	isBoundingPoint (const TPoint2D &iPoint) const
	true for points defining the boundary

bool	forAllPrimaryUndirectedEdges (const TEdgeCallback &iCallback)
	forAllPrimaryUndirectedEdges.

bool	forAllPrimaryUndirectedEdgesCached (const TEdgeCallback &iCallback)
	forAllPrimaryUndirectedEdges.

TEdge *	locate (const TPoint2D &iPoint, TEdge *iHint=0) const
	locate an edge of the triangle containing iPoint

TEdge *	pointLocate (const TPoint2D &iPoint) const
	locate an edge of which the org is the same as iPoint, useful for known degeneracy point location, possibly slower than the regular locate

TEdge *	shoot (const TRay2D &iRay) const
	locate the edge found by shooting the ray from within the triangle containt the tail of the ray

TEdge *	insertSite (const TPoint2D &iPoint, bool makeDelaunay=true, bool forceOnEdge=false)
	makeDelaunay: after insertion of the site force a Delaunay triangulation forceOnEdge : points are considered on the edge although due to numerical roundoff they maybe not, as user you should let this default to false or you'd better be knowning damn well what you are doing :-D

TEdge *	insertEdge (const TLineSegment2D &iSegment, EdgeHandle iLeftHandle=EdgeHandle(), EdgeHandle iRightHandle=EdgeHandle(), PointHandle iPointHandle=PointHandle(), bool forcePointHandle=false, bool makeDelaunay=true)
	insertEdge.

void	markPolygon (TEdge *iStartEdge, const TSimplePolygon2D &iPolygon, FaceHandle iFaceHandle)
	marks all faces which have their barycentrum inside the given polygon with the provided handle

void	markPolygons (const std::vector< TSimplePolygon2D > &iPolygons, const std::vector< FaceHandle > &iFaceHandles)
	marks all faces which have their barycentrum inside the given polygon with the provided handle

bool	deleteEdge (TEdge *iEdge)
	delete edge without using gc

bool	gcDeleteEdge (TEdge *iEdge)
	delete edge using garbage collector, useful for deletion avalanches

int	gc ()
	do garbage collection after deletion avalanches, returns number of quadedge collected

TEdge *	makeEdge (const TPoint2D &a, const TPoint2D &b, bool makeConstrained)
	makes a dangling edge, this is really only for ADVANCED usage, you'll have to splice it or it won't be in the mesh!

TEdge *	connect (TEdge a, TEdge b)
	connects the dest of a with the org of b

TEdge *	split (TEdge *a, T iWhere)
	splits an edge with iWhere in the open interval (0,1) and returns the new edge with as org the splitting point

template<typename InputPolygonIterator, typename InputFaceHandleIterator>
TEMPLATE_DEF void	markPolygons (InputPolygonIterator iFirstPolygon, InputPolygonIterator iLastPolygon, InputFaceHandleIterator iFirstFaceHandle)
	marks all faces which have their barycentrum inside the given polygon with the provided handle

template<typename InputPolygonIterator, typename InputFaceHandleIterator>
TEMPLATE_DEF bool	forAllPolygonFaces (InputPolygonIterator iFirstPolygon, InputPolygonIterator iLastPolygon, InputFaceHandleIterator iFirstFaceHandle, const TEdgePolyFaceHandleCallback &iCallback)
	marks all faces which have their barycentrum inside the given polygon with the provided handle

Static Public Member Functions
static int	chainOrder (const TEdge *iEdge)
	chainOrder.

static int	vertexOrder (const TEdge *iEdge)
	vertexOrder.

static bool	allEqualChainOrder (const TEdge *iEdge)
	allEqualchainOrder.

Static Public Attributes
static const int	PLANAR_MESH_STACK_DEPTH = TBitField::size - 1
	this determines the maximum nesting depth of forAllVertices and forAllFaces

Detailed Description

a planar mesh

Author: Tom De Muer [TDM]

Credits:: This code is inspired on the code of Dani Lischinski distributed under the GPL (Graphics Gems IV)

Definition at line 245 of file planar_mesh.h.

Member Function Documentation

◆ forAllPrimaryUndirectedEdges()

TEMPLATE_DEF bool lass::spat::PlanarMesh::forAllPrimaryUndirectedEdges ( const TEdgeCallback & iCallback )

forAllPrimaryUndirectedEdges.

Edges sharing endpoints are only listed once

Definition at line 2990 of file planar_mesh.h.

◆ forAllPrimaryUndirectedEdgesCached()

TEMPLATE_DEF bool lass::spat::PlanarMesh::forAllPrimaryUndirectedEdgesCached ( const TEdgeCallback & iCallback )

forAllPrimaryUndirectedEdges.

Edges sharing endpoints are only listed once. Random starting point

Definition at line 3011 of file planar_mesh.h.

◆ shoot()

TEMPLATE_DEF PlanarMesh< T, PointHandle, EdgeHandle, FaceHandle >::TEdge * lass::spat::PlanarMesh::shoot ( const TRay2D & iRay ) const

locate the edge found by shooting the ray from within the triangle containt the tail of the ray

method is polygon-safe

Definition at line 1599 of file planar_mesh.h.

References lass::num::abs(), lass::prim::Ray2D< T, NormalizingPolicy, ParameterPolicy >::classify(), locate(), lass::prim::Ray2D< T, NormalizingPolicy, ParameterPolicy >::point(), lass::prim::sRight, lass::prim::sSurface, lass::prim::Ray2D< T, NormalizingPolicy, ParameterPolicy >::support(), lass::prim::Ray2D< T, NormalizingPolicy, ParameterPolicy >::t(), and vertexOrder().

◆ insertEdge()

TEMPLATE_DEF PlanarMesh< T, PointHandle, EdgeHandle, FaceHandle >::TEdge * lass::spat::PlanarMesh::insertEdge	(	const TLineSegment2D &	iSegment,
		EdgeHandle	iLeftHandle = EdgeHandle(),
		EdgeHandle	iRightHandle = EdgeHandle(),
		PointHandle	iPointHandle = PointHandle(),
		bool	iForcePointHandle = false,
		bool	makeDelaunay = true )

insertEdge.

Inserts a constrained edge into the planar mesh. Edges on the lefthand side of the edge will be assigned iLeftHandle, others, iRightHandle. All inserted points will be assigned the point handle, in case the iPointHandle is different from the NullType.

Definition at line 2159 of file planar_mesh.h.

References lass::num::abs(), allEqualChainOrder(), insertEdge(), insertSite(), locate(), pointLocate(), lass::prim::rOne, lass::prim::LineSegment2D< T, ParameterPolicy >::vector(), and vertexOrder().

Referenced by insertEdge().

◆ chainOrder()

TEMPLATE_DEF int lass::spat::PlanarMesh::chainOrder ( const TEdge * iEdge )

static

chainOrder.

returns the order of the polygonal chain starting from iEdge and walking around the left-face of iEdge. Or in other words: the number of vertices in the polygon on the left of iEdge.

Definition at line 2763 of file planar_mesh.h.

Referenced by allEqualChainOrder(), locate(), and markPolygon().
