lass::prim::impl::Plane3DCartesian< T, NormalizingPolicy > Class Template Reference

implementation of plane 3d with a cartesian equation More...

#include <plane_3d_cartesian.h>

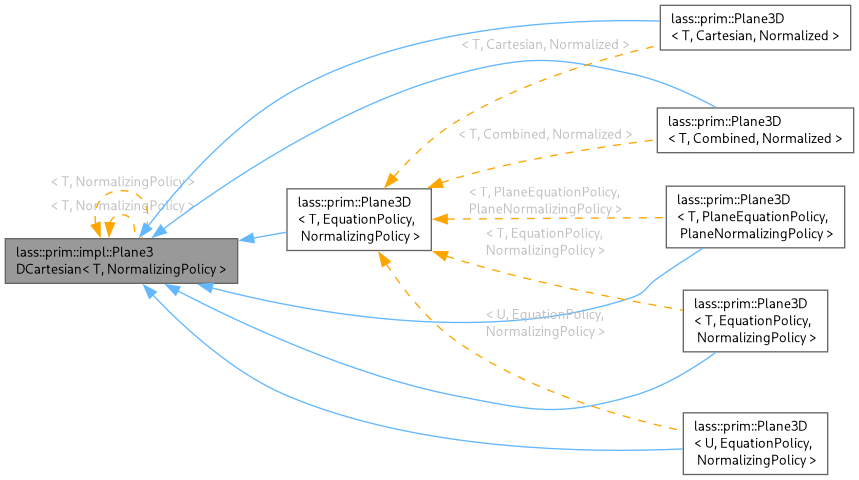

Inheritance diagram for lass::prim::impl::Plane3DCartesian< T, NormalizingPolicy >:

Public Member Functions

 Plane3DCartesian ()
 initializes to an invalid state.

 Plane3DCartesian (const TPoint &iSupport, const TPoint &iPointU, const TPoint &iPointV)
 Construct a plane through three points.

 Plane3DCartesian (const TPoint &iSupport, const TVector &iDirectionU, const TVector &iDirectionV)
 construct a plane through a support point and by two direction vectors.

 Plane3DCartesian (const TVector &iNormal, const TPoint &iSupport)
 Construct a plane through a support point and by a normal vector.

 Plane3DCartesian (const TVector &iNormal, TParam iD)
 Construct a plane by a cartesian equation N.P + d == 0.

const TPoint support () const
 return support point.

void getDirections (TVector &oDirectionU, TVector &oDirectionV) const
 return U and V direction vectors

const TVector directionU () const
 return U direction vector.

const TVector directionV () const
 return V direction vector.

void getReciprocals (TVector &oReciprocalU, TVector &oReciprocalV) const
 return reciprocal vectors for U and V direction vectors

const TVector reciprocalU () const
 return reciprocal for U direction vector.

const TVector reciprocalV () const
 return reciprocal for V direction vector.

const TValue equation (const TPoint &iPoint) const
 Return value of point in equation.

const TValue equation (const TPoint &iPoint, TParam iRelativeTolerance) const
 Return value of point in equation.

const TVector reject (const TPoint &iPoint) const
 return the vector that, if added to the PROJECTION of iPoint, you get iPoint again.

const TVector reject (const TVector &iVector) const
 return the part of iVector that is orthogonal to the plane.

const TPoint project (const TPoint &iPoint) const
 project a point orthogonally onto the plane

const TVector project (const TVector &iVector) const
 project a vector orthogonally onto the plane

const TPoint reflect (const TPoint &iPoint) const
 reflect a point orthogonally into the plane.

const TVector reflect (const TVector &iVector) const
 reflect a vector orthogonally into the plane

const TPoint point (TParam iU, TParam iV) const
 return point by filling in the parametric equation: P(u, v) = S + u * U + v * V

const TPoint point (const TUV &iUV) const
 return point by filling in the parametric equation: P(u, v) = S + u * U + v * V

const TUV uv (const TPoint &iPoint) const
 return UV pair of parameters

bool isValid () const
 return true if plane is a valid plane (no normal or direction vectors that are zero).


Detailed Description

template<typename T, class NormalizingPolicy = Normalized>
class lass::prim::impl::Plane3DCartesian< T, NormalizingPolicy >

implementation of plane 3d with a cartesian equation

Author
Bram de Greve [BdG]

The implementation of this class uses the cartesian equation a * x + b * y + c * z + d == 0.

Warning
The interface requires to have two direction vectors too, but of course, the cartesian equation does not provide this. So, it has to generate two direction vectors on request. THESE ARE NOT NECESSARELY THE SAME AS THE ONE YOU'VE MIGHT TO USE TO SET THE PLANE. i.e. if you go like this:
plane.getDirections(directionV, directionV);
A 3D hyper plane.
Definition plane_3d.h:361
const TVector directionV() const
return V direction vector.

then at the end, directionV and directionV will probably not be the same as at first. This is because the plane will only create a normal vector based on the direction vectors, and then forget about them. If you ask to get the direction vectors, it has to create new ones.

Definition at line 83 of file plane_3d_cartesian.h.

Constructor & Destructor Documentation

◆ Plane3DCartesian() [1/4]

template<typename T, class NP>
lass::prim::impl::Plane3DCartesian< T, NP >::Plane3DCartesian ( const TPoint & iSupport,
const TPoint & iPointU,
const TPoint & iPointV )

Construct a plane through three points.

  • normal vector N is given by the cross product N = U x V.
  • value d is choosen so that the support point is indeed a point of the plane.

Definition at line 77 of file plane_3d_cartesian.inl.

References lass::prim::impl::Plane3DImplDetail::generateCartesian().

◆ Plane3DCartesian() [2/4]

template<typename T, class NP>
lass::prim::impl::Plane3DCartesian< T, NP >::Plane3DCartesian ( const TPoint & iSupport,
const TVector & iDirectionU,
const TVector & iDirectionV )

construct a plane through a support point and by two direction vectors.

  • normal vector N is given by the cross product N = U x V.
  • value d is choosen so that the support point is indeed a point of the plane.

Definition at line 93 of file plane_3d_cartesian.inl.

References lass::prim::impl::Plane3DImplDetail::generateCartesian().

◆ Plane3DCartesian() [3/4]

template<typename T, class NP>
lass::prim::impl::Plane3DCartesian< T, NP >::Plane3DCartesian ( const TVector & iNormal,
const TPoint & iSupport )

Construct a plane through a support point and by a normal vector.

  • normal vector N is given by the vector iNormal.
  • value d is choosen so that the support point is indeed a point of the plane.

Definition at line 108 of file plane_3d_cartesian.inl.

◆ Plane3DCartesian() [4/4]

template<typename T, class NP>
lass::prim::impl::Plane3DCartesian< T, NP >::Plane3DCartesian ( const TVector & iNormal,
TParam iD )

Construct a plane by a cartesian equation N.P + d == 0.

  • normal vector N is given by the vector iNormal.
  • value d is given by the value iD.

Definition at line 122 of file plane_3d_cartesian.inl.

Member Function Documentation

◆ reject() [1/2]

template<typename T, class NP>
const Plane3DCartesian< T, NP >::TVector lass::prim::impl::Plane3DCartesian< T, NP >::reject ( const TPoint & iPoint) const

return the vector that, if added to the PROJECTION of iPoint, you get iPoint again.

iPoint == (almost) project(iPoint) + reject(iPoint)

Definition at line 272 of file plane_3d_cartesian.inl.

References equation().

Referenced by project(), project(), reflect(), and reflect().

◆ reject() [2/2]

template<typename T, class NP>
const Plane3DCartesian< T, NP >::TVector lass::prim::impl::Plane3DCartesian< T, NP >::reject ( const TVector & iVector) const

return the part of iVector that is orthogonal to the plane.

it's the vector that, if added to the PROJECTION of iVector, you get iVector again. iVector == (almost) project(iVector) + reject(iVector).

Definition at line 285 of file plane_3d_cartesian.inl.
