One of the simplier meshes. More...

#include <triangle_mesh_3d.h>

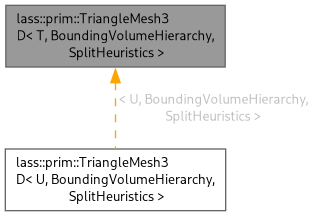

Inheritance diagram for lass::prim::TriangleMesh3D< T, BoundingVolumeHierarchy, SplitHeuristics >:

Public Member Functions
void	flatFaces ()
	remove all normals, so that faces become flat

template<typename Func>
void	subdivisionWithLimitSurface (unsigned level, Func snapToLimitSurface)
	global subdivision with function to resnap new vertices.

void	autoSew ()
	automatically sews (unconnected) triangles by comparing geometrical vertices and normals

void	autoCrease (unsigned level, TParam maxAngleInRadians)
	automatically assign crease levels to edges with discontinued normals

Result	intersect (const TRay &ray, TTriangleIterator &triangle, TReference t, TParam tMin=0, IntersectionContext *context=0) const
	Find nearest intersection with ray with t > tMin.

bool	intersects (const TRay &ray, TParam tMin, TParam tMax) const
	Checks if the ray has any intersection with the mesh, with t > tMin and t < tMax.

Result	intersectFilter (const TRay &ray, TTriangleIterator &triangle, TReference t, TParam tMin, TFilter filter, IntersectionContext *context=0) const
	Find nearest intersection with ray that passes the filter, and with t > tMin.

bool	intersectsFilter (const TRay &ray, TParam tMin, TParam tMax, TFilter filter) const
	Checks if the ray has any intersection that passes the filter, and with t > tMin and t < tMax.

Detailed Description

template<typename T, template< typename TT, typename OT, typename SH > class BoundingVolumeHierarchy, typename SplitHeuristics>
class lass::prim::TriangleMesh3D< T, BoundingVolumeHierarchy, SplitHeuristics >

One of the simplier meshes.

Author: Bram de Greve [BdG]

Definition at line 87 of file triangle_mesh_3d.h.

Member Function Documentation

◆ subdivisionWithLimitSurface()

template<typename T, template< typename, typename, typename > class BHV, typename SH>

template<typename Func>

void lass::prim::TriangleMesh3D< T, BHV, SH >::subdivisionWithLimitSurface	(	unsigned	level,
		Func	snapToLimitSurface )

global subdivision with function to resnap new vertices.

void snapToLimitSurface(TPoint& vert, TVector* n1, TVector* n2, TUv* uv1, TUv* uv2, const size_t* attr1, const size_t* attr2)

Definition at line 450 of file triangle_mesh_3d.inl.

References subdivisionWithLimitSurface().

Referenced by subdivisionWithLimitSurface().

◆ intersect()

template<typename T, template< typename, typename, typename > class BHV, typename SH>

Result lass::prim::TriangleMesh3D< T, BHV, SH >::intersect	(	const TRay &	ray,
		TTriangleIterator &	triangle,
		TReference	t,
		TParam	tMin = 0,
		IntersectionContext *	context = 0 ) const

Find nearest intersection with ray with t > tMin.

Of all triangles that intersect with the ray, return the one that is nearest to the ray origin while still being further away than tMin. The distance along the ray to the intersection point is returned in t. If an intersection was found, the context (if provided) is filled with intersection information.

Parameters

[in]	ray	the ray to intersect with
[out]	triangle	the triangle that was hit
[out]	t	the distance along the ray to the intersection point, with t > tMin
[in]	tMin	the minimum distance along the ray to consider, so that t > tMin
[out]	context	the context to be filled with intersection information (optional)

Returns: rOne if an intersection was found, rNone otherwise

Definition at line 718 of file triangle_mesh_3d.inl.

References intersect(), and intersectFilter().

Referenced by intersect().

◆ intersects()

template<typename T, template< typename, typename, typename > class BHV, typename SH>

bool lass::prim::TriangleMesh3D< T, BHV, SH >::intersects	(	const TRay &	ray,
		TParam	tMin,
		TParam	tMax ) const

Checks if the ray has any intersection with the mesh, with t > tMin and t < tMax.

Parameters

[in]	ray	the ray to intersect with
[in]	tMin	the minimum distance along the ray to consider, so that t > tMin
[in]	tMax	the maximum distance along the ray to consider, so that t < tMax

Returns: true if an intersection was found, false otherwise

Definition at line 779 of file triangle_mesh_3d.inl.

References intersects(), and intersectsFilter().

Referenced by intersects().

◆ intersectFilter()

template<typename T, template< typename, typename, typename > class BHV, typename SH>

Result lass::prim::TriangleMesh3D< T, BHV, SH >::intersectFilter	(	const TRay &	ray,
		TTriangleIterator &	triangle,
		TReference	t,
		TParam	tMin,
		TFilter	filter,
		IntersectionContext *	context = 0 ) const

Find nearest intersection with ray that passes the filter, and with t > tMin.

Similar to intersect, but the filter function is evaluated for each candidate intersection point. If the filter returns true, the intersection is accepted. If the filter returns false, the next candidate is evaluated. This allows for implementing an alpha mask on the triangle mesh, for example.

Parameters

[in]	ray	the ray to intersect with
[out]	triangle	the triangle that was hit
[out]	t	the distance along the ray to the intersection point, with t > tMin
[in]	tMin	the minimum distance along the ray to consider, so that t > tMin
[in]	filter	the filter to apply to the intersection points
[out]	context	the context to be filled with intersection information (optional)

Returns: rOne if an intersection was found, rNone otherwise

Definition at line 744 of file triangle_mesh_3d.inl.

References intersectFilter(), lass::prim::rNone, and lass::prim::rOne.

Referenced by intersect(), and intersectFilter().

◆ intersectsFilter()

template<typename T, template< typename, typename, typename > class BHV, typename SH>

bool lass::prim::TriangleMesh3D< T, BHV, SH >::intersectsFilter	(	const TRay &	ray,
		TParam	tMin,
		TParam	tMax,
		TFilter	filter ) const

Checks if the ray has any intersection that passes the filter, and with t > tMin and t < tMax.

Similar to intersects, but the filter function is evaluated for each candidate intersection point. Only if it returns true, it's considered as a valid intersection. This allows for implementing an alpha mask on the triangle mesh, for example.

Parameters

[in]	ray	the ray to intersect with
[in]	tMin	the minimum distance along the ray to consider, so that t > tMin
[in]	tMax	the maximum distance along the ray to consider, so that t < tMax
[in]	filter	the filter to apply to the intersection points

Returns: true if an intersection was found, false otherwise

Definition at line 801 of file triangle_mesh_3d.inl.

References intersectsFilter().

Referenced by intersects(), and intersectsFilter().

The documentation for this class was generated from the following files:
